Dimensional Analysis & Numerical Experiments for a Rotating Disc

Introduction

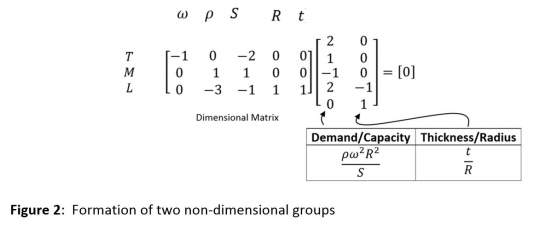

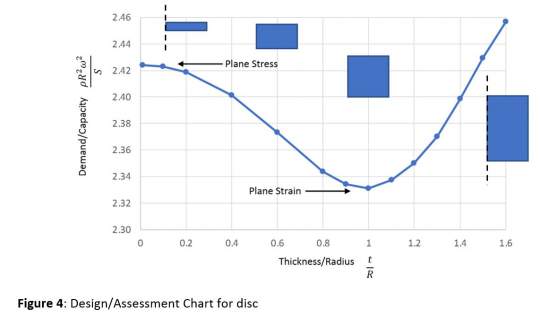

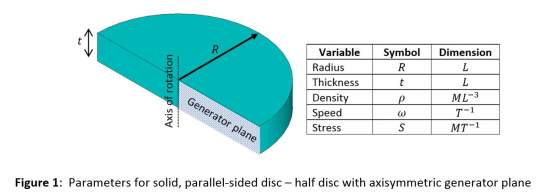

This technical note has been prepared to demonstrate how dimensional analysis can lead to a more rational and simplified way of understanding and describing the mechanics of a problem in structural analysis. The case of a rotating, solid, parallel-sided disc is considered. Finite element analysis is used to explore the relationship between the two non-dimensional groups for this problem.

Author

Angus Ramsay

Keywords

Dimensional Analysis; Numerical Experiments; Rotating Disc
