Plate Membrane Trajectories

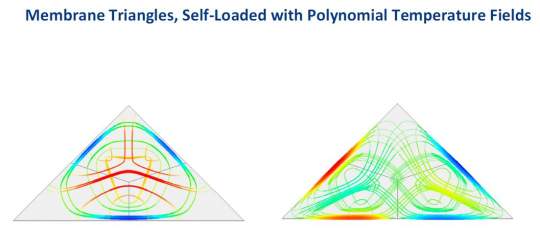

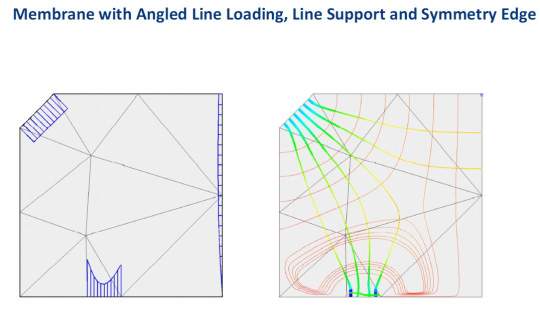

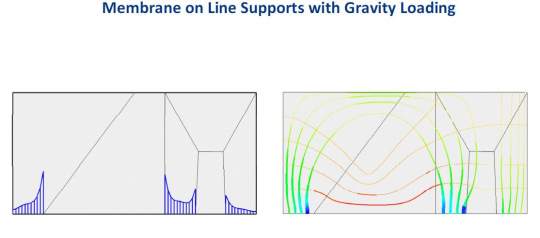

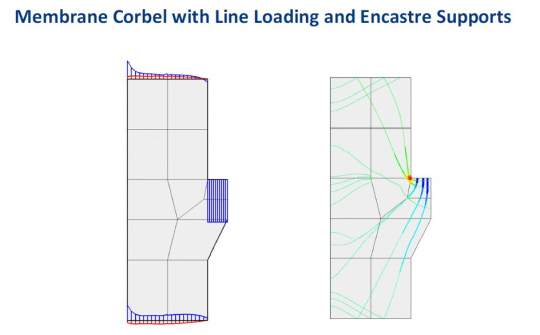

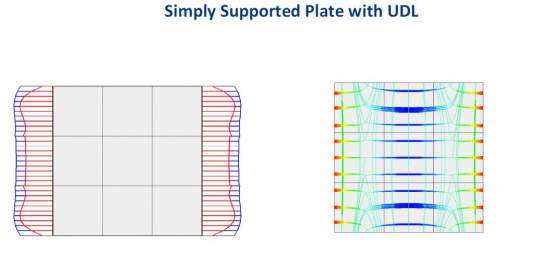

Principal stress trajectories are shown for five plate membrane examples based on the linear elastic stress field. Principal stress trajectories may be used to assist an engineer with placing of reinforcement through the concept of a Strut & Tie model as shown below.
